SG7706

High Performance Methacrylate Adhesive

RECOMMENDED FOR

Clip and Rodding

PRODUCTION

Description

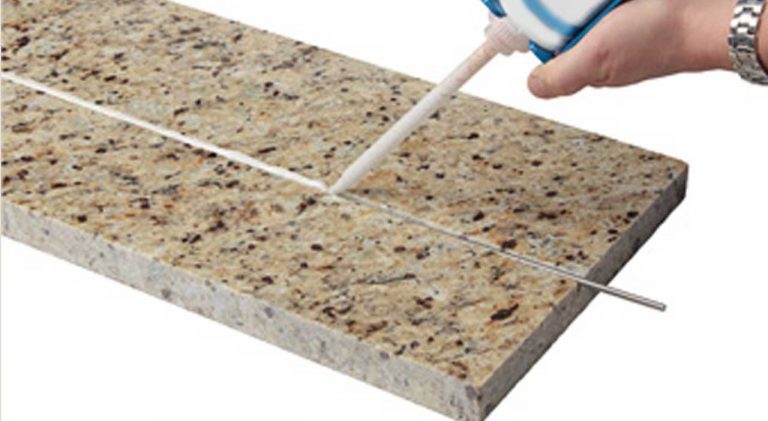

SCIGRIP® SG7706 adhesive is a two-part methacrylate, structural rodding and clip bonding adhesive designed for the structural bonding of sink clips, steel and fiberglass rodding materials, and steel and aluminum to solid surface (acrylic and polyester), engineered stone, quartz surfaces, and natural stone products.

Features & Benefits

  • Excellent choice for bonding structural metals to engineered stone surfaces
  • Also provides high strength bonds to acrylic solid surface, polyester solid surface (both filled and unfilled), and solid surface (combinations of both acrylic and polyester solid surface resins) and the steel clips, rods, fiberglass and other materials
  • Outstanding sag resistance
  • Excellent fatigue, impact and shock load resistance
  • Outstanding environmental and chemical resistance
  • All metals require a primer
  • MMA based 1:1 ratio product
RECOMMENDATIONS & SURFACE PREP
Best
Test
Primer
Prep
METALS
Aluminum
Coated/Painted Metals
Plated Metals
Sheet Metal
Stainless Steel
Cold Rolled Steel
THERMOPLASTICS
ABS
Acrylics
Polycarbonates
Vinyls (PVC)
THERMOSET COMPOSITES
Fiberglass
Gelcoats
SMC & BMC
RTM & RTM Light

What Are You Bonding Together?

SPECIFICATIONS & AVAILABILITY

Working Times

Adhesive
Gap Fill
Inch
Working Time
min.
Fixture Time
SG7706
0.025
4-8
10-15
SG7706 B
0.025

Typical Physical Properties

Adhesive
Ratio A:B
Volume Weight
SG7706
1:1
SG7706 B
1:1

Typical Cured Properties

Adhesive
Substrate
Shear Strength
psi
SG7706
Acrylic Solid Surface
2,200-3,000
SG7706
Polyester Solid Surface
2,500-3,000
SG7706
Steel/Stainless Steel
2,800-3,500
SG7706
Aluminum
2,000-2,500

Product Certifications

This SCIGRIP product is GREENGUARD certified for low chemical emissions
